HELIOS 1925
LED MOVING WASH: it can achieve color mixing,distribute evenly color light, play up colors and make application scenes gorgeous,magnificent. Zooming from 10° to 60° functions as beam and wash effects.The fixture functions pan 530°,tilt 280°, projecting all directions as desired.
HELIOS 1925 is one of the classical LED moving fixtures designed and created uniquely, really ideal for theaters, churches, TV studios, photography studios, fashion shows, stage performances, musical shows,color washing for indoor LED applications,etc.
*gracefully arced housing design making professional and magnificent
*professional Power in powerCON, Power out powerCON equipped
*LCD display;
*new PWM dimming electronical theory applied for reasonable fresh rates:max.23KHz and real flicker free;
*dimming modes: linear,square law,inverse square law, s-curve;
*PFC electronic power supply;
*10°-60° marvelous smooth zooming;
*Equipped with 19*high MCD 4 in 1 RGBW 25W LED,max. 475W, 50,000 hours
*driving IC and capacitors from USA and European unions equipped for steady constant current outputs;
*intelligent temperature self controlling: self adjusting temperature to protect at the time of max. temperature happening;
*magnetic positioning for perfect pan,tilt scanning on an exact positoning scale
*excellent white color mixing for 2700K,3200K,4200K,5600K
*K9 light guide lens to make sure of double brightness as normal acrylic/PMMA
AC 100-240V 50/60Hz
Power consumption: max. 500W
*10°-60° marvelous smooth zooming;
*Equipped with 19*high MCD 4 in 1 RGBW 25W LED,max. 475W, 50,000 hours
0-100% linear dimming, separate strobe
DMX 512 protocol, master/slave, auto
15/27 DMX channel modes
Running temperature self controlling
Displaying off 5 seconds automatically after finishing sets of the fixture
Environmental temperature: -20℃ to 40℃
Hanging brackets included:omega-holder with quick-lock fasteners
Net weight: 9.50kgs
Dimensions: 350*200*400mm(L*W*D)(front head placed vertically)
DMX FUNCTIONS
27-channel mode
Channel 1 - pan movement (Pan)
Channel 2 - pan fine 16 bit
Channel 3 - Vertical movement (Tilt)
Channel 4 - tilt fine 16 bit
Channel 5 - pan,tilt speed adjustment from fast to slow
Channel 6 -zooming from 10° to 60°
Channel 7 -reset
Channel 8 - master dimmer from 0-100%
Channel 9 - strobe
0-19 off
20-24 open
25-64 strobe from fast to slow
65-69 open
70-84 opening pulse fast to slow
85-89 open
90-104 closing pulse strobe from fast to slow
105-109 open
110-124 random fast to slow
125-129 open
130-144 random opening pulse fast to slow
145-149 open
150-164 random closing pulse fast to slow
165-169 open
170-184 burst pulse fast to slow
185-189 open
190-204 random burst pulse fast to slow
205-209 open
210-224 sine wave fast to slow
225-229 open
230-244 burst fast to slow
245-255 open
Channel 10 –ring 1 red dimmer from 0-100%
Channel 11 – ring 1 green dimmer from 0-100%
Channel 12 –ring 1 blue dimmer from 0-100%
Channel 13 –ring 1 white dimmer from 0-100%
Channel 14 –ring 1 colors
0-9 open
10-17 color 1
***
218-225 color 29
226-232 2700K
233-240 3200K
241-247 4200K
248-255 5600K
Channel 15 – ring 2 red dimmer from 0-100%
Channel 16 – ring 2 green dimmer from 0-100%
Channel 17 – ring 2 blue dimmer from 0-100%
Channel 18 – ring 2 white dimmer from 0-100%
Channel 19 – ring 2 colors
0-9 open
10-17 color 1
***
218-225 color 29
226-232 2700K
233-240 3200K
241-247 4200K
248-255 5600K
Channel 20 – ring 3 red dimmer from 0-100%
Channel 21 – ring 3 green dimmer from 0-100%
Channel 22 –ring 3 blue dimmer from 0-100%
Channel 23 –ring 3 white dimmer from 0-100%
Channel 24 –ring 3 colors
0-9 open
10-17 color 1
***
218-225 color 29
226-232 2700K
233-240 3200K
241-247 4200K
248-255 5600K
Channel 25 –preset ring 1/2/3 colors shows
Channel 26 –running speed adjustment from slow to fast
Channel 27 –CTO: color temperature orange
15-channel mode
Channel 1 - pan movement (Pan)
Channel 2 - pan fine 16 bit
Channel 3 - Vertical movement (Tilt)
Channel 4 - tilt fine 16 bit
Channel 5 - pan,tilt speed adjustme
Channel 6 -zooming from 10° to 60°
Channel 7 -reset
Channel 8 - master dimmer from 0-100%
Channel 9 - strobe
Channel 10 –red dimmer from 0-100%
Channel 11 –green dimmer from 0-100%
Channel 12 –blue dimmer from 0-100%
Channel 13 –white dimmer from 0-100%
Channel 14 –color macros
0-9 open
10-17 color 1
***
218-225 color 29
226-232 2700K
233-240 3200K
241-247 4200K
248-255 5600K
Channel 15 –CTO: color temperature orange

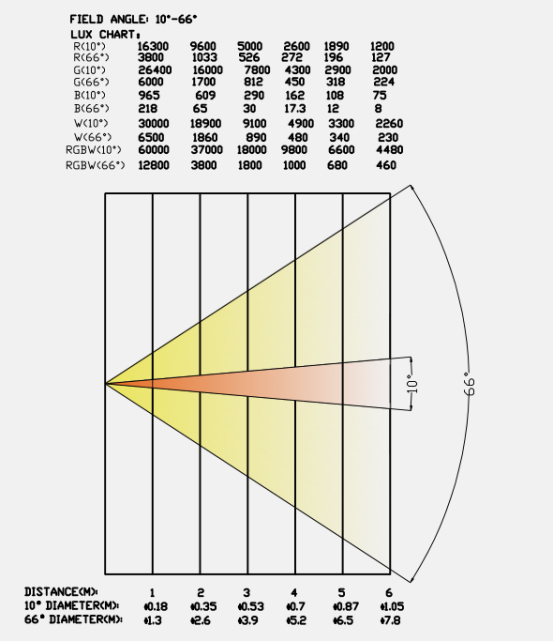

LUX CHART(照度图）：

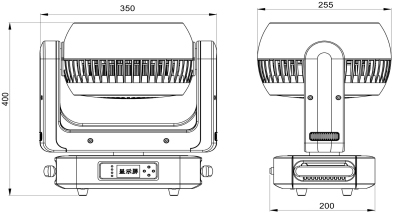

DIMENSIONS:
