LED MOVING WASH 7 RGBW ZOOM PLUS

STAGE LIGHT

LED MOVING WASH: it can achieve color mixing,distribute evenly color light, play up colors and make application scenes gorgeous,magnificent. Zooming from 8° to 60° functions as beam and wash effects.The fixture functions pan 530°,tilt 280°, projecting all directions as desired.

LED MOVING WASH 7 RGBW ZOOM PLUS is one of the classical LED moving fixtures designed and created uniquely, really ideal for theaters, churches, TV studios, photography studios, fashion shows, stage performances, musical shows,color washing for indoor LED applications,etc.

*streamline housing making professional and magnificent
*professional Power in powerCON, Power out powerCON equipped

*LCD display;

*new PWM dimming electronical theory applied for reasonable fresh rates:max.23KHz and real flicker free;

*dimming modes: linear,square law,inverse square law, s-curve;

*PFC electronic power supply;

*8°-60° marvelous smooth zooming;

*Equipped with 7*high MCD 4 in 1 RGBW LED,max. 280W, 50,000 hours

*driving IC and capacitors from USA and European unions equipped for steady constant current outputs;

*intelligent temperature self controlling: self adjusting temperature to protect at the time of max. temperature happening;

AC 100-240V 50/60Hz

Power consumption: max. 320W

*8°-60° marvelous smooth zooming;

*Equipped with 7*high MCD 4 in 1 RGBW LED,max. 280W, 50,000 hours

0-100% linear dimming, separate strobe

DMX 512 protocol, master/slave, auto

14 DMX channel modes

Running temperature self controlling

Displaying off 5 seconds automatically after finishing sets of the fixture

Environmental temperature: -20℃ to 40℃

Hanging brackets included:omega-holder with quick-lock fasteners

Net weight:8.50 kgs

Dimensions: 325*215*385mm(L*W*D)(front head placed vertically)

DMX FUNCTIONS

DMX FUNCTIONS

14-CHANNEL MODE

Channel 1 - pan movement (Pan)

Channel 2 - pan fine 16 bit

Channel 3 - Vertical movement (Tilt)

Channel 4 - tilt fine 16 bit

Channel 5 - pan,tilt speed adjustment from fast to slow

Channel 6 -reset

Channel 7 - master dimmer from 0-100%

Channel 8 - strobe

Channel 9 – red dimmer from 0-100%

Channel 10 – green dimmer from 0-100%

Channel 11 –blue dimmer from 0-100%

Channel 12 –white dimmer from 0-100%

Channel 13 –color macros

Channel 14 -zooming

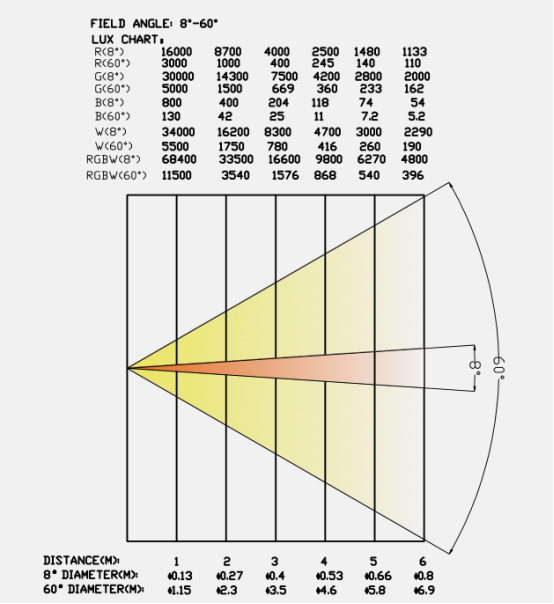

LUX CHART(照度图）：

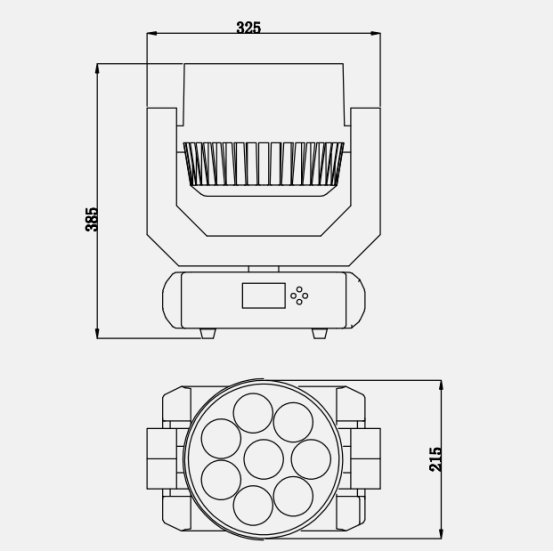

尺寸（DIMENSIONS):
