BSW 330
STAGE LIGHT
Intelligent moving lighting: widely used in large-scale performance, square,stage of literature and arts, wedding place and so on. It is a high-tech product combining electronic, mechanical and optical. When working, it is stable and reliable, good light efficiency, accurate positioning, good heat dissipation, light body and material structure conforms to man-machine engineering requirements. The Intelligent moving lighting is made up of four systems: optical, mechanical, electrical and program control. The four systems are interrelated and organically combined to meet the needs of light, color, speed, direction, effect, heat dissipation, noise and location. The optical system design mainly considers the utilization rate of luminous flux of light source: the specific performance indexes include light intensity, uniformity, saturation and spot size. The mechanical properties of the lighting body are mainly embodied in the mechanical strength of the parts of the lighting body, making the lighting body in a continuous and effective working time, no deformation, wear resistance, corrosion resistance, anti-seismic, compression, and the housing of the lighting must have strict waterproof, dustproof, anti static and moistureproof requirements. Electricity is mainly manifested in the design of a reasonable circuit for the light source, the reasonable matching of strong and weak electricity, and not interfering with each other. Program control: using DMX 512 data format to write program files, 250K DMX data flow rate, 4 microsecond per BIT ; ArtNet protocol: using high speed ARM processor, RJ45 network interface, compatible DMX512.
Wash: three primary colors (CMY) color mixing system, combined with infinite colors, rich colors, color rendering of the playing area or stage.
Spot Pattern: color, light and shade, pattern combination change, pattern rotation, prism effect, soft light effect, ring contraction, focus zoom, strobe and so on, can create a variety of colorful pattern effect.
Light Beam: the light source concentrates on one focus to emit out and form a beam. It can create a variety of colorful beam effects with color, light and shade, pattern combination change, pattern rotation, prism effect, soft light effect, aperture contraction, focusing zoom, stroboscopic and so on.
one of the classical LED moving fixtures designed and created uniquely, really ideal for large-scale performance, square,stage of literature and arts, wedding place,TV studios, fashion shows, stage performances, musical shows,etc.
compacted structure, lightweight, energy-saving LED light source,no changing of light spectrum and color temperature during dimmer
*streamline housing making professional and magnificent;
*professional Power in powerCON, Power out powerCON equipped;
*CMY color mixing optical system;
*CTO color temperature correction;
*Blue LCD display with touch screen;
*new PWM dimming electronical theory applied for reasonable fresh rates:max.18KHz and real flicker free;
*dimmer fine 16 bit;
*five dimming modes: standard,stage, TV,theater,architectural;
*PFC electronic power supply;
*8°-34° marvelous smooth zooming:zooming fine 16 bit;
*CRI(Color Rendition Index）：Ra:95
*injection molding nylon housing:wear resistant,heat preventive,corrosion resist,good elasticity, looking comely, streamline forming;
*copper pipe plus silent fans for excellent ventilations;
*precise optical system for 8°-34° marvelous smooth zooming with special sliding guiding system;
*projecting evenly,smoothly,sharply, with the center 100 against the border proportion 80;
*Equipped with LED WHITE max. 350W, 7500-8000K,50,000 hours;
*driving IC and capacitors from USA and European unions equipped for steady constant current outputs;
*intelligent temperature self controlling: self adjusting temperature to protect at the time of max. temperature happening;
*lock and unlock LCD display to avoid operations by mistake;
*lithium battery for lcd display power and convenient to set menus in LCD display without AC power;
AC 100-240V 50/60Hz;
Power consumption: max.370W;
0-100% linear dimming, separate strobe:normal,pulse,random;
DMX 512 control:three-pin/five-pin XLR sockets equipped;
master/slave, auto, sound active with adjustable sound sensitivity;
24/29 DMX channel modes;
Pan 540°,pan fine 16 bit,tilt 270°,tilt fan 16 bit
Color wheel with 7 dichroic colors plus open(red/blue/green/yellow/purple/orange/light blue),moving forward and backward from slow to fast or fast to slow;
CMY optical system:cyan,magenta,yellow:9 macros,auto color mixing;
CTO color temperature correction:linear CTO, auto CTO;
Gobo wheel I with 7 interchangeable rotation gobos plus open:gobo shaking,moving forward and backward from slow to fast or fast to slow;
Gobo wheel II with 9 static gobos plus open:gobo shaking,moving forward and backward from slow to fast or fast to slow;
Three-facet prism,prism rotation;
Separate strobe:normal,pulse,random;
Focus,focus fine 16 bit;
Linear iris;
Fost lens;
Preset shows and reset;
Running temperature self controlling
Displaying off 5 seconds automatically after finishing sets of the fixture
Environmental temperature: -20℃ to 40℃
Net weight: 24.40Kgs(fixture)
*Dimensions:432*411*662mm(L*W*D)(head placed vertically)
DMX FUNCTIONS
29-channel mode
Channel 1 - pan movement (Pan)
Channel 2 - pan fine 16 bit
Channel 3 - Vertical movement (Tilt)
Channel 4 - tilt fine 16 bit
Channel 5 - pan,tilt speed adjustment from fast to slow
Channel 6 -cyan
Channel 7 -magenta
Channel 8 -yellow
Channel 9 -7 dichroic colors plus open
Channel 10 -CTO
Channel 11 -CMY macros
Channel 12 -CMY auto mixing
Channel 13 -7 rotation gobos plus open
Channel 14 -gobo rotation
Channel 15 -9 static gobos plus open
Channel 16 -prism
Channel 17 -prism rotation
Channel 18 -dimmer
Channel 19 -dimmer modes
Channel 20 -strobe
Channel 21-focus
Channel 22 -focus fine 16 bit
Channel 23 -zooming
Channel 24 -zooming fine 16 bit
Channel 25 -iris
Channel 26 -iris fine 16 bit
Channel 27 -frost lens
Channel 28 -preset shows
Channel 29 -reset
24-channel mode
Channel 1 - pan movement (Pan)
Channel 2 - Vertical movement (Tilt)
Channel 3 - pan,tilt speed adjustment from fast to slow
Channel 4 -cyan
Channel 5 -magenta
Channel 6 -yellow
Channel 7 -7 dichroic colors plus open
Channel 8 -CTO
Channel 9 -CMY macros
Channel 10 -CMY auto mixing
Channel 11 -7 rotation gobos plus open
Channel 12 -gobo rotation
Channel 13 -9 static gobos plus open
Channel 14 -prism
Channel 15 -prism rotation
Channel 16 -dimmer
Channel 17 -dimmer modes
Channel 18 -strobe
Channel 19-focus
Channel 20 -zooming
Channel 21 -iris
Channel 22 -frost lens
Channel 23 -preset shows
Channel 24 -reset

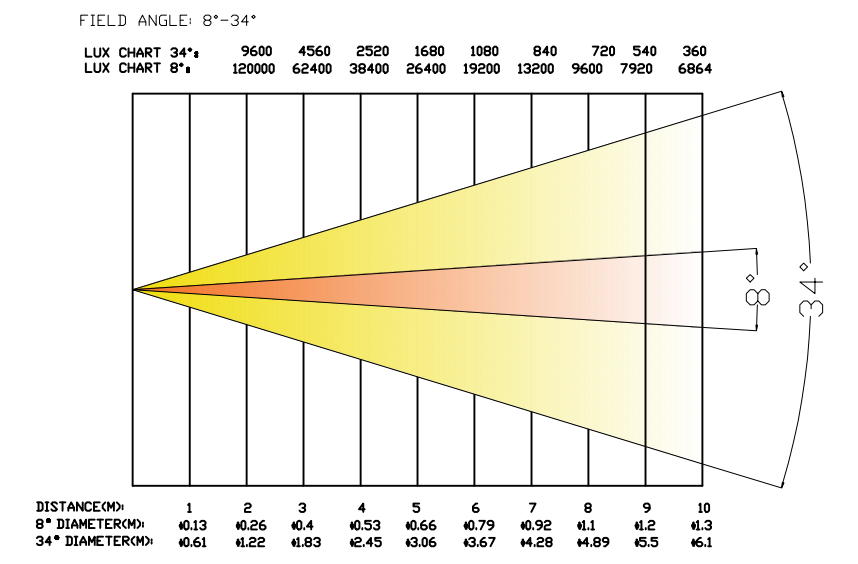

LUX CHART(照度图）：

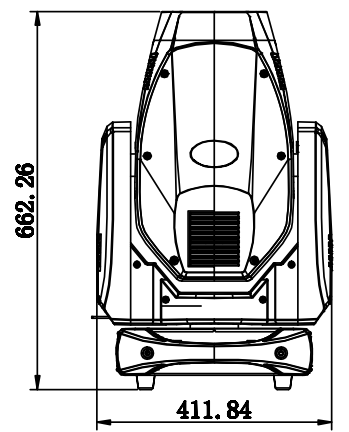

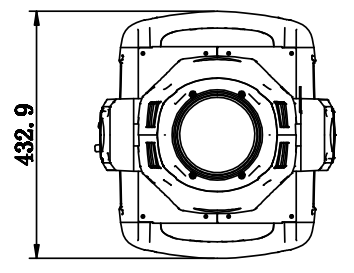

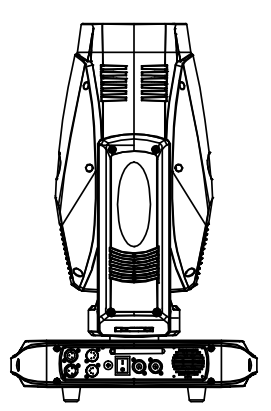

尺寸（DIMENSIONS):
