LED PROFILE RGBW 200
LED PROFIEL 200 RGBW is one of the classical COB LED fixtures designed and created uniquely, really ideal for theaters, churches, TV studios, photography studios, fashion shows, stage performances, musical shows,etc.
*CRI(Color Rendition Index）：Ra:>95
*19°/26°/36°/50° beam angle optional
*Molded engineering ABS end housings for more professional appearances;
*Molded engineering ABS end housings for more professional appearances;
*color gel filter/gobo holders included;
*LED display;
*new PWM dimming electronical theory applied for reasonable fresh rates and real flicker free;
*molded aluminium plus silent fans for excellent ventilations;
*PFC electronic power supply;
*Equipped with COB LED RGBW 4 IN 1 200W, 50,000 hours;
*driving IC and capacitors from USA and European unions equipped for steady constant current outputs;
*intelligent temperature self controlling: self adjusting temperature to protect at the time of max. temperature happening;
*professional convex,concave optical lens equipped;
*four shutters to shape the beam
*manual focus
AC 100-240V 50/60Hz
Power consumption:200W
Equipped with COB LED RGBW 4 IN 1 200W, 50,000 hours
0-100% linear dimming, separate strobe
DMX 512 protocol, master/slave, auto
6/7/10 DMX channel modes
Running temperature self controlling
Displaying off 5 seconds automatically after finishing sets of the fixture
Environmental temperature: -20℃ to 40℃
Net weight:6.40 kgs
Dimensions: 645*355*470mm(L*W*D)(hanging bracket placed vertically)
INNER PACKING CARTON DIMENSIONS: 29*29*66cm
GROSS WEIGHT:7.40kgs
DMX FUNCTIONS
6-CHANNEL MODE
Channel 1 –red from darkness to full brightness
Channel 2 –green from darkness to full brightness
Channel 3 –blue from darkness to full brightness
Channel 4 –white from darkness to full brightness
Channel 5 –dimmer from darkness to full brightness
Channel 6 –dimmer durations
0-50 0 second
51-101 1 second
102-152 2 seconds
153-203 3 seconds
204-255 5 seconds
7-CHANNEL MODE
Channel 1 –red from darkness to full brightness
Channel 2 –green from darkness to full brightness
Channel 3 –blue from darkness to full brightness
Channel 4 –white from darkness to full brightness
Channel 5 –dimmer from darkness to full brightness
Channel 6 –dimmer durations
0-50 0 second
51-101 1 second
102-152 2 seconds
153-203 3 seconds
204-255 5 seconds
Channel 7 –strobe
0-2 not occupied
3-125 strobe from slow to fast
126-255 random strobe
10-CHANNEL MODE
Channel 1 –red from darkness to full brightness
Channel 2 –green from darkness to full brightness
Channel 3 –blue from darkness to full brightness
Channel 4 –white from darkness to full brightness
Channel 5 –dimmer from darkness to full brightness
Channel 6 –color macros
Channel 7 –color changing from slow to fast
Channel 8 –color fades
Channel 9 –dimmer durations
0-50 0 second
51-101 1 second
102-152 2 seconds
153-203 3 seconds
204-255 5 seconds
Channel 10 –strobe
0-2 not occupied
3-125 strobe from slow to fast
126-255 random strobe

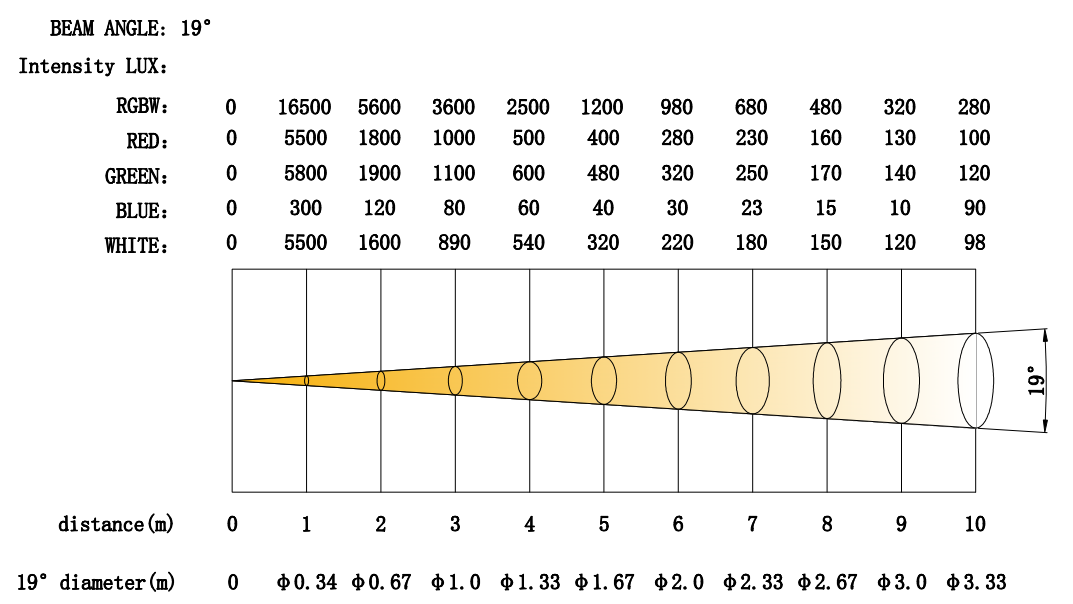

LUX CHART(照度图）：

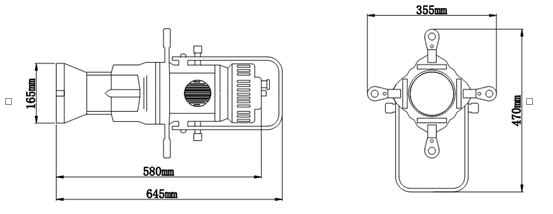

尺寸（DIMENSIONS):
