COB LED BLINDER 4 CW/WW

COB LED BLINDER 4 CW/WW

COB LED BLINDER 4 CW/WW is one of the classical COB LED fixtures designed and created uniquely, really ideal for theaters, churches, TV studios, photography studios, fashion shows, stage performances, musical shows,etc.
*CRI(Color Rendition Index):Ra:95

*projection can be adjusted from 0-70° as desired manually;

**safety wires included;

*Power in powerCON/blue, Power out powerCON/grey equipped;

*blue LCD display;

*new PWM dimming electronical theory applied for reasonable fresh rates and real flicker free;

*four dimming modes: linear, S-curve, Square law, Inverse square law;

*molded aluminium plus silent fans for excellent ventilations;

*PFC electronic power supply;

*beam angle 53°,field angle 68°;

*Equipped with 4*LED COLD WHITE/WARM WHITE TWO IN ONE 100W , total 400W, 50,000 hours

*driving IC and capacitors from USA and European unions equipped for steady constant current outputs;

*intelligent temperature self controlling: self adjusting temperature to protect at the time of max. temperature happening;

*molded reflector for very even projections;

*molded decoration covering looking professional;

AC 100-240V 50/60Hz

Power consumption: 430W

beam angle 53°,field angle 68°

Equipped with 4*LED COLD WHITE/WARM WHITE TWO IN ONE 100W , total 400W,  50,000 hours

0-100% linear dimming, separate strobe

DMX 512 protocol, master/slave, auto, sound active with adjustable sound sensitivity

12/14 DMX channel modes

Running temperature self controlling

Displaying off 5 seconds automatically after finishing sets of the fixture

Environmental temperature: -20℃ to 40℃

Hanging brackets included: floor stand

Net weight: 8.25kgs

Dimensions: 395*370.5*200mm(L*W*D)(hanging bracket placed vertically)

INNER PACKING CARTON DIMENSIONS:46*44*27cm

GROSS WEIGHT:9.45kgs



DMX FUNCTIONS

12-CHANNEL MODE

Channel 1 – cold white I from darkness to full brightness

Channel 2 – warm white I from darkness to full brightness

Channel 3 – cold white II from darkness to full brightness

Channel 4 – warm white II from darkness to full brightness

Channel 5 – cold white III from darkness to full brightness

Channel 6 – warm white III from darkness to full brightness

Channel 7 – cold white IV from darkness to full brightness

Channel 8 – warm white IV from darkness to full brightness

Channel 9 – master dimmer from darkness to full brightness

Channel 10 –strobe

Channel 11 –dimmer mode selections

Channel 12 –dimmer durations

14-CHANNEL MODE

Channel 1 – cold white I from darkness to full brightness

Channel 2 – warm white I from darkness to full brightness

Channel 3 – cold white II from darkness to full brightness

Channel 4 – warm white II from darkness to full brightness

Channel 5 – cold white III from darkness to full brightness

Channel 6 – warm white III from darkness to full brightness

Channel 7 – cold white IV from darkness to full brightness

Channel 8 – warm white IV from darkness to full brightness

Channel 9 – master dimmer from darkness to full brightness

Channel 10 –strobe

Channel 11 –dimmer mode selections
Channel 12 –dimmer durations
Channel 13 –color changing
Channel 14 –color fades

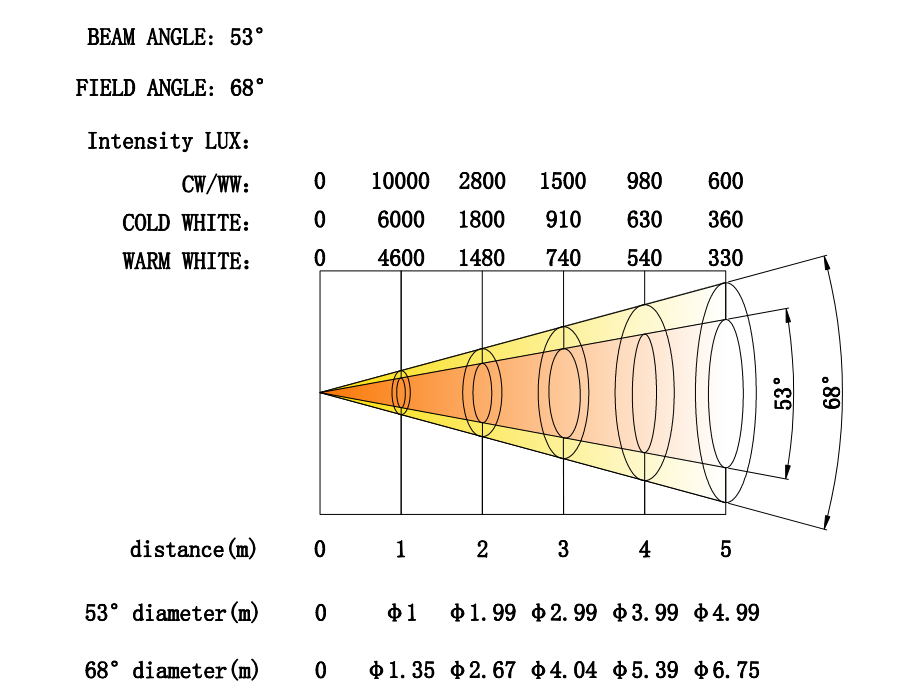

LUX CHART(照度图):

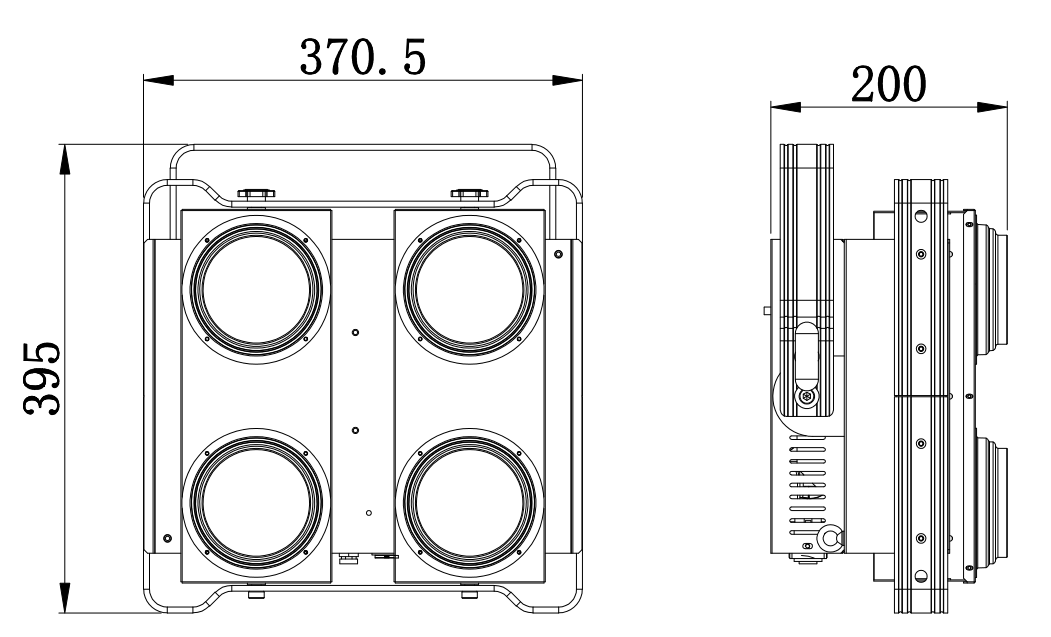

尺寸(DIMENSIONS):
