LED FOLLOWSPOT ZOOM A

LED FOLLOWSPOT ZOOM A is one of the classical COB LED fixtures designed and created uniquely, really ideal for theaters, wedding ceremony, live concerts, opening/closing ceremony,TV studios, fashion shows, stage performances, musical shows,etc.
Highlighting the players in the darkness of the stage,projecting supplementary light to the players, other additional effects,esp. in performing dramas:creating atmosphere,highlighting the player, emphasizing the scene, developing plots;

compacted structure, lightweight, energy-saving LED light source,no changing of light spectrum and color temperature during dimmer

*CRI(Color Rendition Index）：Ra:95

*Extruded aluminium housing looking comely, streamline forming;

*four zincalloyed hanging brackets for easy carrying,one ABS handle by manual to set position of the fixture;

**Power in powerCON/blue, Power out powerCON/grey equipped;

*blue LCD display;

*new PWM dimming electronical theory applied for reasonable fresh rates:23KHz for real flicker free;

*copper pipe plus silent fans for excellent ventilations;

*PFC electronic power supply;

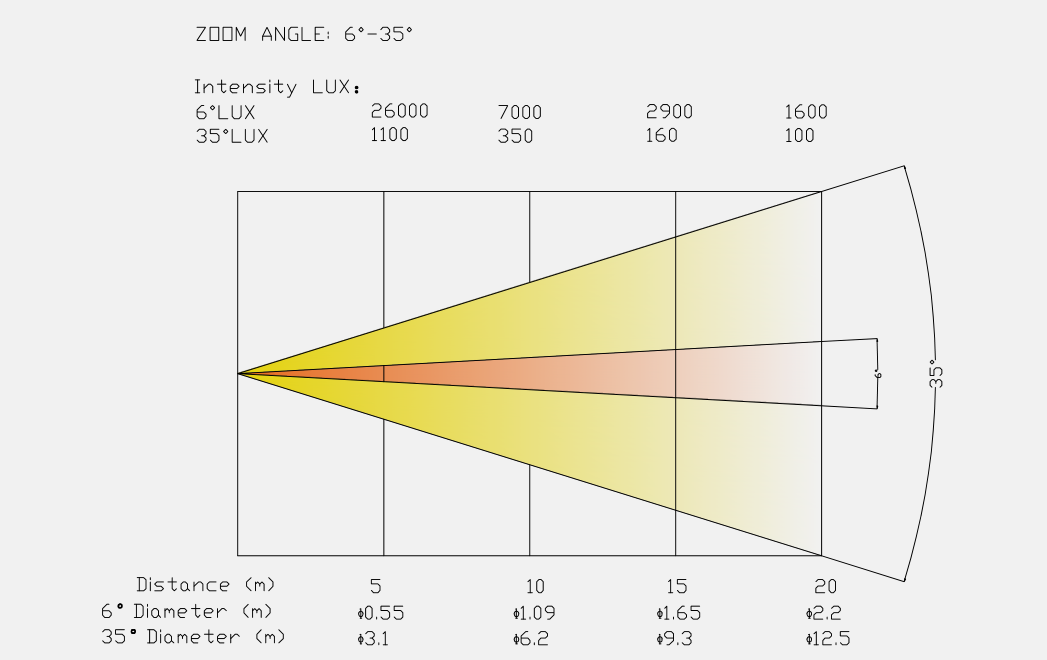

*precise optical system for 6°-35° marvelous smooth zooming with special sliding guiding system;

*projecting evenly,smoothly,sharply, with the center 100 against the border proportion 80;

*Equipped with LED WHITE max. 350W, 7500-8000K,50,000 hours;

*driving IC and capacitors from USA and European unions equipped for steady constant current outputs;

*intelligent temperature self controlling: self adjusting temperature to protect at the time of max. temperature happening;

*AC 100-240V 50/60Hz;

*Power consumption: max.370W;

*0-100% linear dimming, separate strobe:normal,pulse,random;

*DMX 512 protocol/wireless DMX 512 control:three-pin/five-pin XLR sockets equipped;

*master/slave, auto, sound active with adjustable sound sensitivity;

*7 DMX channel modes;

*red/green/blue/amber/orange colors plus open;

*CTO wheel: 2100K/3500K/5600K/6500K plus UV,open;

*professional stainless steel tripod included: extending 89cm-141cm height;

*control panel by manual equipped on the rear: 6 sliding faders for dimmer,strobe,color temperature,focus,zoom,iris;7 press buttons for blackout,open,red,green,blue,amber,orange colors;

*Running temperature self controlling

*Displaying off 5 seconds automatically after finishing sets of the fixture

*Environmental temperature: -20℃ to 40℃

*Net weight: 18.85Kgs(fixture)/tripod stand: 5.15kgs

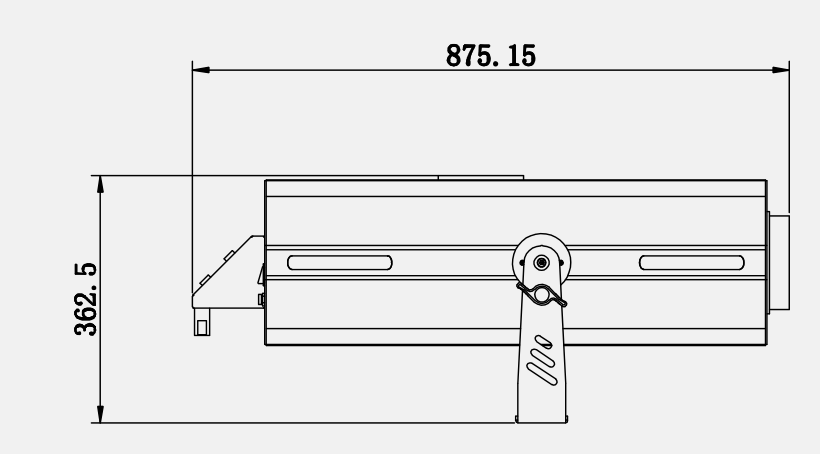

*Dimensions: 876*365*363mm(L*W*D)(hanging bracket placed vertically)

DMX FUNCTIONS

7-CHANNEL MODE

Channel 1 – dimmer

Channel 2 – strobe:normal,pulse,random

Channel 3 – color wheel:5 colors plus open

Channel 4 – CTO,UV plus open

Channel 5 – focus
