METIS 4 FX

METIS 4 FX is one of the classical club DJ effects designed and created uniquely, really ideal for clubs, bars, disco halls, small events, KTV room,musical shops, mobile DJs, cabarets, etc.

DJ effects are the creator of main colors, adjuster of  the overall pattern and style of the disco hall, provide a unique atmosphere. It makes people feel differently under light colors changing, giving people a passion, let them dance to the rhythm of music, fast rhythm songs full of energy and passion,slow rhythm songs full of grace and tender. DJ effects lighting supply with a special expression of fun and entertainment,flickering lighting with a sense of mystery and temptation produces an atmosphere of time of color changing,space of light changing,a sense of perspective and distance.

*gobo moonflower: led light projecting through a different,detailed gobo pattern,spinning,sweeping in and out to create an impressively dynamic lighting effect, LED wash light, galaxian style cluster red/green laser,derby beam effects,4 FX in 1;

*LED wash light combined with red/green laser +gobo moonflower effects+derby beam effects into one fixture,projection covering large areas

*IEC AC IN/OUT to daisy chain power

*LED display

*RGBW 4 IN 1 15W combined LED producing derby fast moving countless colored light beams

*gobo moonflower: led light projecting through a different,detailed gobo pattern,spinning,sweeping in and out to create an impressively dynamic lighting effect

*red/green/blue/amber wash light

*Laser projecting thousands of red and green laser beams, falling stars,geometric figures

*Equipped with 2*RGBW 4 IN 1 15W combined LED+8*high MCD 3W LED,red/green/blue/white,each 2 pcs+8*high MCD 3W LED,red/green/blue/amber,each 2 pcs+100MW red laser/100mw green laser

AC 100-240V 50/60Hz

Power consumption: max. 80W

0-30Hz separate strobe
DMX 512 protocol, master/slave, auto, sound active with adjustable sound sensitivity

2/29 DMX channel modes

Displaying off 5 seconds automatically after finishing sets of the fixture

Beam Angle (wash): 25°
Field Angle (wash): 30°
Coverage Angle (laser): 105°
Coverage Angle (moonflower): 60°
Coverage Angle (derby): 80°
Illuminance (full color wash): 300 lux @ 3 m
Environmental temperature: -20℃ to 40℃

Hanging brackets included

Four rubber feet for easy floor standing

Net weight: 6.10Kgs

Dimensions:647*307*227mm(L*W*D)



DMX FUNCTIONS



MODE A:



2-CHANNEL MODE

Channel 1 – preset shows,sound active

Channel 2 – running speed adjustments



MODE B:



29-CHANNEL MODE

Channel 1 – red

Channel 2 – green

Channel 3 – blue

Channel 4 – white

Channel 5 – dimmer from darkness to full brightness

Channel 6 – strobe:normal,pulse,random

Channel 7 – color changing

Channel 8 – motor

Channel 9 –red

Channel 10 – green

Channel 11 –blue

Channel 12 – white

Channel 13 – dimmer from darkness to full brightness

Channel 14 – strobe:normal,pulse,random

Channel 15 – color changing

Channel 16 – motor

Channel 17 –red/green laser

Channel 18 – strobe

Channel 19 – motor

Channel 20 – red

Channel 21 – green

Channel 22 – blue

Channel 23 – amber

Channel 24 – dimmer from darkness to full brightness

Channel 25 – strobe:normal,pulse,random

Channel 26 – color macros

Channel 27 – color changing

Channel 28 – preset shows,sound active

Channel 29 – running adjustments

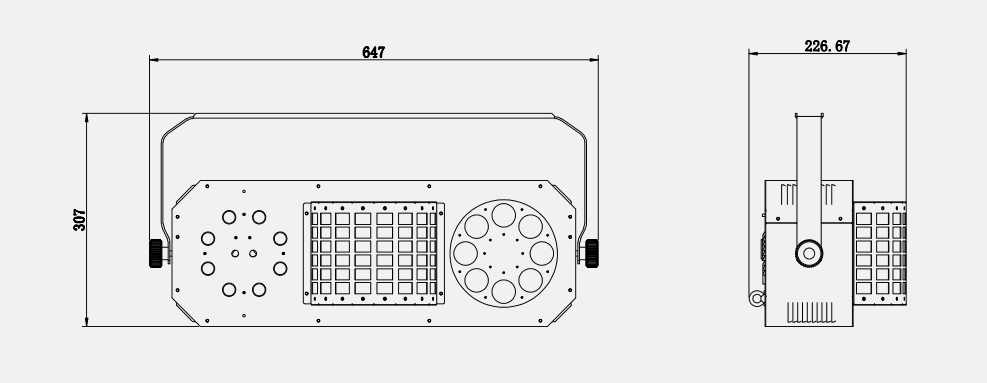

尺寸(DIMENSIONS):
