COLONY 4 FX

COLONY 4 FX is one of the classical club DJ effects designed and created uniquely, really ideal for clubs, bars, disco halls, small events, musical shops, mobile DJs, cabarets, etc.

*LED white strobe combined with red/green laser +RGBA rotating moonflower effects into one fixture,projection covering large areas

*IEC AC IN/OUT to daisy chain power

*LED display

*RGBA 4 IN 1 15W combined LED with 2 separate reflecting dishes to create moonflowers by rotating, red/green laser and white strobe effect

*Laser projecting thousands of red and green laser beams, falling stars,geometric figures

*Equipped with 2*RGBA 4 IN 1 15W combined LED+12*high MCD 1W WHITE led+100MW red laser/100mw green laser

AC 100-240V 50/60Hz

Power consumption: 50W

0-30Hz separate strobe
DMX 512 protocol, master/slave, auto, sound active with adjustable sound sensitivity

2/10 DMX channel modes

Displaying off 5 seconds automatically after finishing sets of the fixture

Beam Angle (strobe): 15°
Field Angle (strobe): 30°
Coverage Angle (laser): 105°
Coverage Angle (moonflower): 50°
Illuminance (strobe): 800 lux @ 2 m
Environmental temperature: -20℃ to 40℃

Hanging brackets included

Net weight: 3.10Kgs

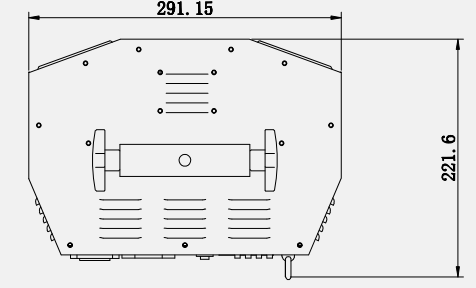

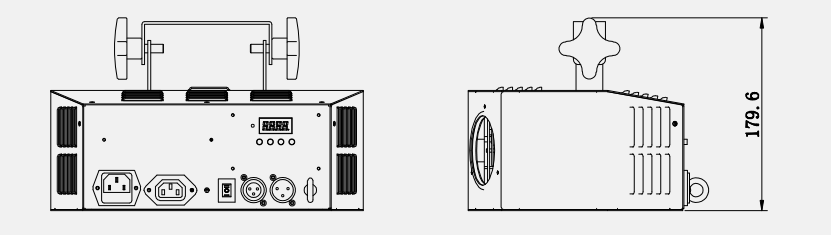

Dimensions:291*221*179mm(L*W*D)

DMX FUNCTIONS

2-CHANNEL MODE

Channel 1 – preset shows,sound active

Channel 2 – preset shows running speed adjustments

10-CHANNEL MODE

Channel 1 – moonflower I,single/double/three/four color mixing, color changing

Channel 2 – strobe, preset shows running speed adjustments,sound active

Channel 3 – motor rotations

Channel 4 – moonflower II,single/double/three/four color mixing, color changing
