LED MATRIX STROBE 25

LED MATRIX STROBE 25 is one of the classical club DJ effects designed and created uniquely, really ideal for clubs, bars, disco halls, small events, musical shops, mobile DJs, cabarets, etc.

*IEC AC IN/OUT to daisy chain power

*25-Zone LED Chasing Strobe

*Manual running and 25 outputs chasing effect

*25x 6-Watt White bright LEDs
*4-Button DMX LED Display
AC 100-240V 50/60Hz

Power consumption: 250W max.

separate strobe,strobe Rate: 0 to 30 Hz
DMX 512 protocol, master/slave, auto, sound active with adjustable sound sensitivity

4/25/30 DMX channel modes

Displaying off 5 seconds automatically after finishing sets of the fixture

Beam Angle (strobe): 25°
Field Angle (strobe): 45°
Coverage Angle (colony): 80°
Environmental temperature: -20℃ to 40℃

Hanging brackets included

Net weight: 4.0Kgs

Dimensions:367*391*102mm(L*W*D)

DMX FUNCTIONS

4-CHANNEL MODE

Channel 1 – white from 0% to 100%

Channel 2 –strobe from slow to fast

Channel 3 –preset shows

0-64                    not occupied

65-191                  11 preset shows

192-255                 14 sound active modes

Channel 4 –running speed

0-255                running speed adjustments from slow to fast when ch3 at 65-191

0-255                sound sensitivity adjustments from small to big when ch3 at 192-255

25-CHANNEL MODE

Channel 1 –LED output 1

Channel 2 –LED output 2

Channel 3 –LED output 3

Channel 4 –LED output 4

Channel 5 –LED output 5

***

Channel 21 –LED output 21

Channel 22 –LED output 22

Channel 23 –LED output 23

Channel 24 –LED output 24

Channel 25 –LED output 25

30-CHANNEL MODE

Channel 1 – white from 0% to 100%

Channel 2 –strobe from slow to fast

Channel 3 –color fade

Channel 4 –preset shows

0-64                    not occupied

65-191                  11 preset shows

192-255                 14 sound active modes

Channel 5 –running speed

0-255                running speed adjustments from slow to fast when ch3 at 65-191

0-255                sound sensitivity adjustments from small to big when ch3 at 192-255

Channel 6 –LED output 1

Channel 7 –LED output 2

Channel 8 –LED output 3

Channel 9–LED output 4

Channel 10 –LED output 5

***

Channel 26 –LED output 21

Channel 27 –LED output 22

Channel 28 –LED output 23

Channel 29 –LED output 24

Channel 30 –LED output 25

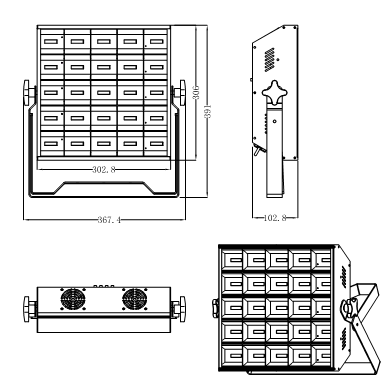

尺寸（DIMENSIONS):
