LED MATRIX WHITE 49
STAGE LIGHT
LED MATRIX WHITE 49 is one of the classical led matrix effects designed and created uniquely, really ideal for theaters, TV studios, fashion shows, stage performances, musical shows,clubs, bars, disco halls, small events, musical shops, mobile DJs, cabarets, etc.
*49*CREE XP-PE 3W WHITE LEDs to create led matrix effects
*Power in powerCON/blue, Power out powerCON/grey equipped
*easily connect 8, 16, etc. together as desired by fast locks
*49 LEDs can be controlled separately to project numbers, marks, letters, short expressions, geometric patterns,lines,sketches,etc.
*Equipped with 49*CREE XP-PE 3W WHITE LEDs
AC 100-240V 50/60Hz
Power consumption: 160W
0-30Hz separate strobe
DMX 512 protocol, master/slave, auto, sound active with adjustable sound sensitivity
5/51 DMX channel modes
Displaying off 5 seconds automatically after finishing sets of the fixture
Beam Angle (matrix): 5°
Environmental temperature: -20℃ to 40℃
Hanging brackets/connection metal plates included
Net weight: 10.40Kgs
Dimensions:500*500*130mm(L*W*D)
DMX FUNCTIONS
5-CHANNEL MODE
Channel 1 – white from darkness to full brightness
Channel 2 – strobe from slow to fast
Channel 3 – preset shows
Channel 4 –running speed adjustments
Channel 5 –sound active
51-CHANNEL MODE
Channel 1 – white from darkness to full brightness
Channel 2 – strobe from slow to fast
Channel 3 – LED output 1
Channel 4 – LED output 2
Channel 5 – LED output 3
***
Channel 50 – LED output 48
Channel 51 – LED output 49

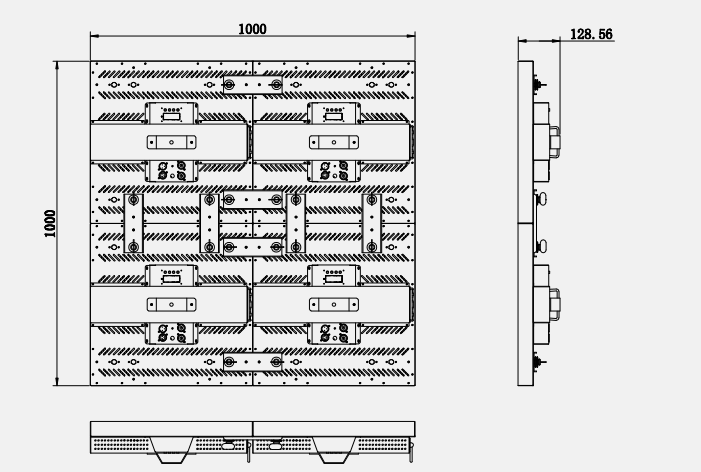

尺寸（DIMENSIONS):
拼接（easily connect 8, 16, etc. together as desired by fast locks）：
