MINOS CW/WW

Minos series is one of the classical COB LED fixtures designed and created uniquely, really ideal for theaters, churches, TV studios, photography studios, fashion shows, stage performances, musical shows,architectural scenic illuminations, theme park/scenic spots evening illuminating, color washing for villas,outdoor LED applications,etc.
*streamline housing making professional and magnificent
*die cast aluminium molded housing both for indoor and outdoor use;
*no need of fans without any fan noise;
*CRI(Color Rendition Index):Ra:95;
*Wirelss DMX control:DMX 512 wirelss signal receiver already designed inside the fixture;
*RDM control for remote DMX addressing
**safety wires included;
*Power in powerCON/blue, Power out powerCON/grey equipped for indoor use;
*LED display;
*new PWM dimming electronical theory applied for reasonable fresh rates:max.23KHz and real flicker free;
*five dimming modes: standard,stage, TV,theater,architectural;
*PFC electronic power supply;
*beam angle 20°,field angle 47°;
 or beam angle 23°,field angle 70°;
*Equipped with 1*LED COLD WHITE/WARM WHITE COMBINED 2 IN 1 max. 200W, 50,000 hours
*color temperature:3200K/5600K
*driving IC and capacitors from USA and European unions equipped for steady constant current outputs;
*intelligent temperature self controlling: self adjusting temperature to protect at the time of max. temperature happening;
*molded reflector for very even projections;
*rotatable and easy to position barndoor included;
AC 100-240V 50/60Hz
Power consumption: max. 200W
beam angle 20°,field angle 47°
or beam angle 23°,field angle 70°
Equipped with 1*LED COLD WHITE/WARM WHITE COMBINED 2 IN 1 max. 200W, 50,000 hours
color temperature:3200K/5600K
0-100% linear dimming, separate strobe
DMX 512 protocol, wireless DMX control,master/slave, auto
5/8 DMX channel modes
Running temperature self controlling
Displaying off 5 seconds automatically after finishing sets of the fixture
Environmental temperature: -20℃ to 40℃
Hanging brackets included: floor stand
Net weight: 11.00kgs
Barndoor:0.90kgs
Dimensions: 428*333*239mm(L*W*D)(hanging bracket placed vertically)
INNER PACKING CARTON DIMENSIONS:34*34*55cm
GROSS WEIGHT:12.95kgs

DMX FUNCTIONS

5-CHANNEL MODE

Channel 1 – cold white from darkness to full brightness
Channel 2 – warm white from darkness to full brightness
Channel 3 – master dimmer from darkness to full brightness
Channel 4 –strobe
Channel 5 –dimmer mode selections

8-CHANNEL MODE

Channel 1 – cold white from darkness to full brightness
Channel 2 – warm white from darkness to full brightness
Channel 3 – master dimmer from darkness to full brightness
Channel 4 –strobe
Channel 5 –dimmer mode selections
Channel 6 – color macros
Channel 7 – color changing
Channel 8 – color fades

LUX CHART(照度图):

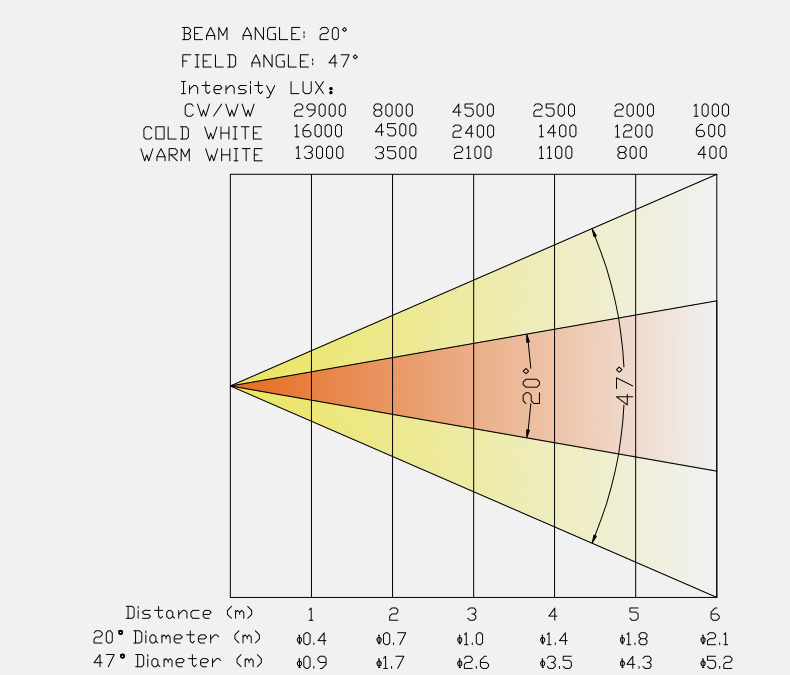

A. beam angle 20°,field angle 47°

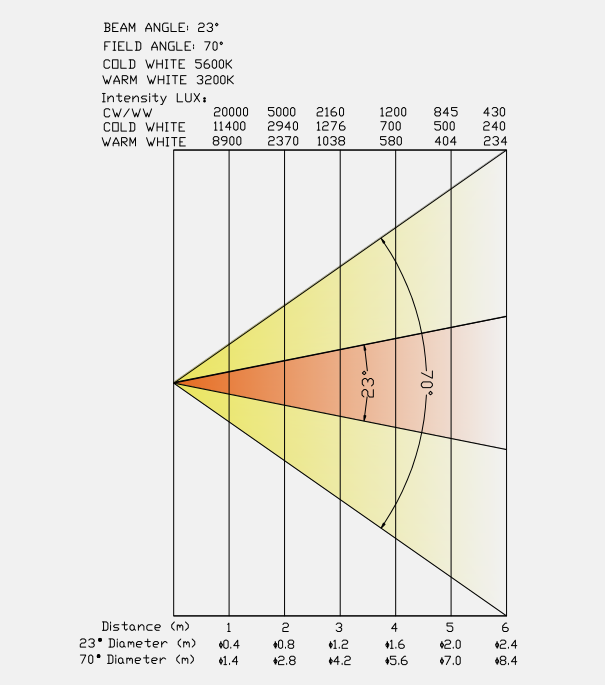

B. beam angle 23°,field angle 70°

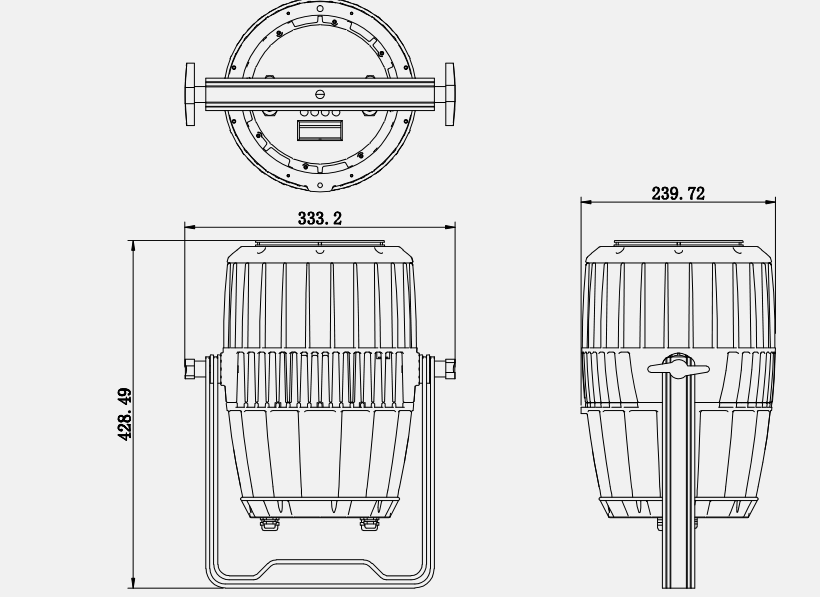

尺寸(DIMENSIONS):
