URANUS 18 RGBWAU(6 IN 1)
URANUS18 series one of the classical LED fixtures series designed and created uniquely, really ideal for INDOOR USE:
theaters, churches, TV studios, photography studios, fashion shows, stage performances, musical shows,etc.
Or for IP 65 OUTDOOR USE:
streets, gardons, parks, viaducts,grassland,overhead bridges, theory parks, architectural outdoor use,etc.
*die cast aluminium for good ventilations, no fans to causing noise
*Power in powerCON/blue, Power out powerCON/grey equipped
*LED display
*new PWM dimming electronical theory applied for reasonable fresh rates and real flicker free
*dimming mode: linear
*CTO: 10000K-3200K, linear dimmer
*beam angle 15°/25°/40°/60° optional
*Equipped with 18*high MCD 6 in 1 RGBWA/UV 12W , total 216W, 50,000 hours
*intelligent temperature self controlling: self adjusting temperature to protect at the time of max. temperature happening;
*uniquely molded lens for sharp,even projections without color shadows;
AC 100-240V 50/60Hz
Power consumption: 216W
0-100% linear dimming, separate strobe
DMX 512 protocol, master/slave, auto, sound active with adjustable sound sensitivity
8/11 DMX channel modes
Running temperature self controlling
Displaying off 5 seconds automatically after finishing sets of the fixture
Environmental temperature: -20℃ to 40℃
Hanging brackets included: floor stand，truss hanging
Net weight: 4.95kgs
Dimensions: 302*137*333mm(L*W*D)(hanging bracket placed vertically)
DMX FUNCTIONS
8-CHANNEL MODE
Channel 1 – red from darkness to full brightness
Channel 2 – green from darkness to full brightness
Channel 3 –blue from darkness to full brightness
Channel 4 – white from darkness to full brightness
Channel 5 – amber from darkness to full brightness
Channel 6 – UV from darkness to full brightness
Channel 7 – master dimmer from darkness to full brightness
Channel 8 –strobe
11-CHANNEL MODE
Channel 1 – red from darkness to full brightness
Channel 2 – green from darkness to full brightness
Channel 3 –blue from darkness to full brightness
Channel 4 – white from darkness to full brightness
Channel 5 – amber from darkness to full brightness
Channel 6 – UV from darkness to full brightness
Channel 7 – master dimmer from darkness to full brightness
Channel 8 –strobe
Channel 9 –color macros
Channel 10 – color changing
Channel 11 – color fades

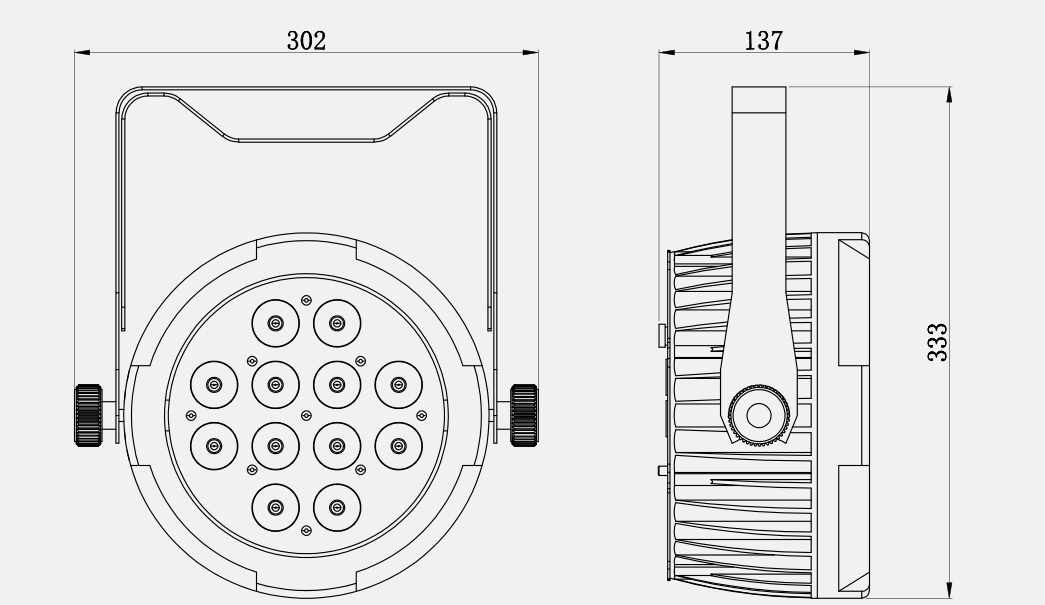

DIMENSIONS:
