URANUS 12 SERIES
URANUS series one of the classical COB LED fixtures series designed and created uniquely, really ideal for theaters, churches, TV studios, photography studios, fashion shows, stage performances, musical shows,etc.
*die cast aluminium for good ventilations, no fans to causing noise
*Power in powerCON/blue, Power out powerCON/grey equipped
*LED display
*new PWM dimming electronical theory applied for reasonable fresh rates and real flicker free
*dimming mode: linear
*beam angle 15°/25°/40°/60° optional
*Equipped with 12*high MCD 6 in 1 RGBWAU 12W , total 144W, 50,000 hours
*intelligent temperature self controlling: self adjusting temperature to protect at the time of max. temperature happening;
*uniquely molded lens for sharp,even projections without color shadows;
AC 100-240V 50/60Hz
Power consumption: 150W
0-100% linear dimming, separate strobe
CTO: 10000K-3200K, linear dimmer
DMX 512 protocol, master/slave, auto, sound active with adjustable sound sensitivity
8/11 DMX channel modes
Running temperature self controlling
Displaying off 5 seconds automatically after finishing sets of the fixture
Environmental temperature: -20℃ to 40℃
Hanging brackets included: floor stand,truss hanging
Net weight: 4.95kgs
Dimensions: 302*137*333mm(L*W*D)(hanging bracket placed vertically)
DMX FUNCTIONS
8-CHANNEL MODE
Channel 1 – red from darkness to full brightness
Channel 2 – green from darkness to full brightness
Channel 3 – blue from darkness to full brightness
Channel 4 – white from darkness to full brightness
Channel 5 – amber from darkness to full brightness
Channel 6 – UV wash from darkness to full brightness
Channel 7 –master dimmer
Channel 8 –strobe
11-CHANNEL MODE
Channel 1 – red from darkness to full brightness
Channel 2 – green from darkness to full brightness
Channel 3 – blue from darkness to full brightness
Channel 4 – white from darkness to full brightness
Channel 5 – amber from darkness to full brightness
Channel 6 – UV wash from darkness to full brightness
Channel 7 –master dimmer
Channel 8 –strobe
Channel 9 –color macros
Channel 10 –color changing from slow to fast
Channel 11 –color fades from slow to fast

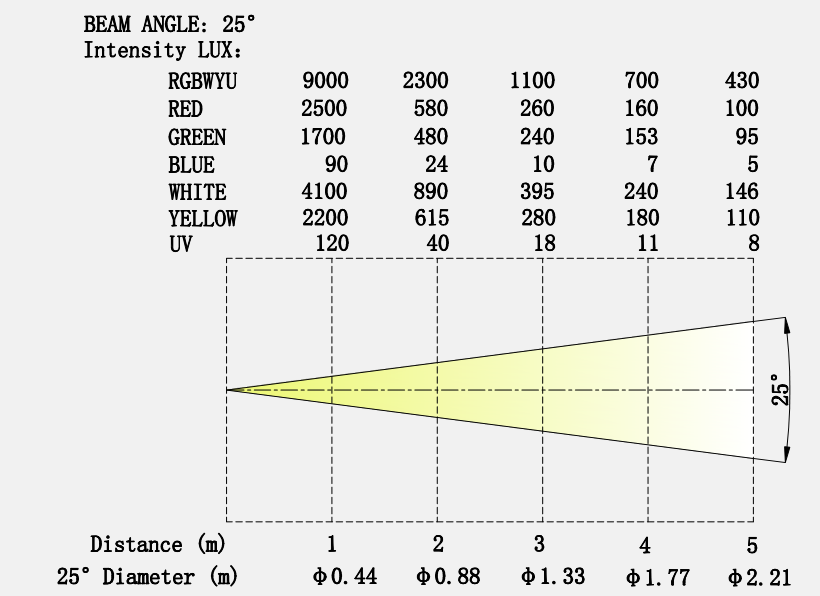

LUX CHART:

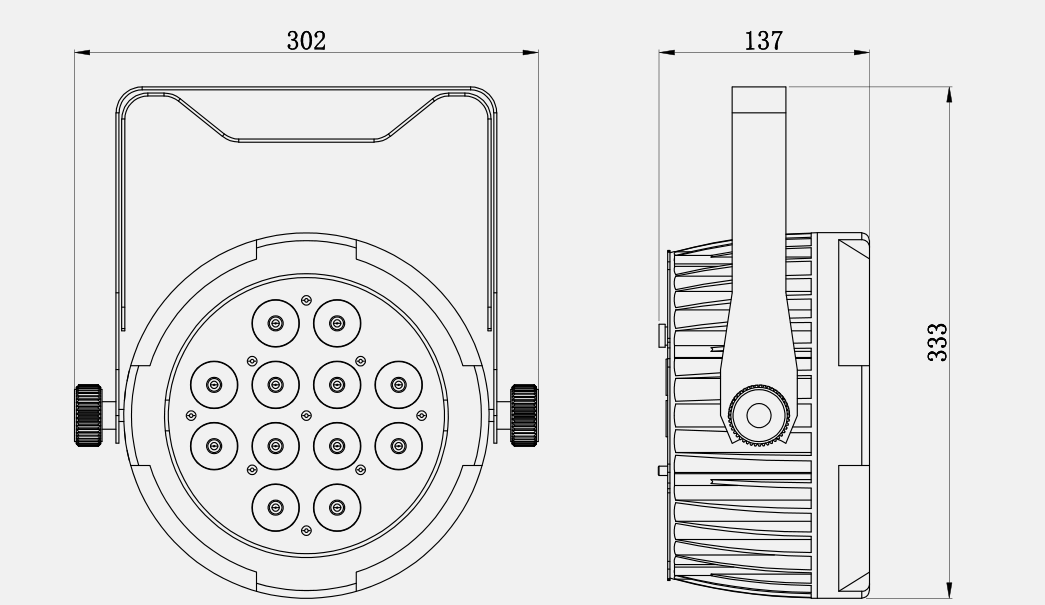

DIMENSIONS:
