LED MATRIX STROBE 25/LED 阵列频闪灯

主要特色：25头LED输出白光频闪效果，可单控25头，任意组合频闪；适合酒吧，音乐吧，KTV, 俱乐部，小型舞台表演等。

输入电压：100-240V 50/60Hz

功率：最大250W

LED光源：25个 高亮度LED 白光6W LED：25*6W

覆盖角度：80°，15米内可有效投射

频闪：独立电子频闪

控制方式： 国际标准DMX 512信号，三芯接口，主从同步，内置程序，自检，声控（可调灵敏度）

通道数量：3通道模式选择，标准模式4通道，扩展模式25或者30通道

其他功能：设置地址码，DMX 通路模式，主从，内置程序设置，亮度调节，速度调节，声控（可调灵敏度），正反显示

防护等级：五金，铝型材，IP20

安装：悬挂于桁架，可调整灯头照射角度

环境温度： -20℃~ 40℃

产品净重：4.0公斤

产品尺寸： 367*391*102mm(长*宽*高)

DMX FUNCTIONS

4-CHANNEL MODE

Channel 1 – white from 0% to 100%

Channel 2 –strobe from slow to fast

Channel 3 –preset shows

0-64                    not occupied

65-191                  11 preset shows

192-255                 14 sound active modes

Channel 4 –running speed

0-255                running speed adjustments from slow to fast when ch3 at 65-191

0-255                sound sensitivity adjustments from small to big when ch3 at 192-255

25-CHANNEL MODE

Channel 1 –LED output 1

Channel 2 –LED output 2

Channel 3 –LED output 3

Channel 4 –LED output 4

Channel 5 –LED output 5

***

Channel 21 –LED output 21

Channel 22 –LED output 22

Channel 23 –LED output 23

Channel 24 –LED output 24

Channel 25 –LED output 25

30-CHANNEL MODE

Channel 1 – white from 0% to 100%

Channel 2 –strobe from slow to fast

Channel 3 –color fade

Channel 4 –preset shows

0-64                    not occupied

65-191                  11 preset shows

192-255                 14 sound active modes

Channel 5 –running speed

0-255                running speed adjustments from slow to fast when ch3 at 65-191

0-255                sound sensitivity adjustments from small to big when ch3 at 192-255

Channel 6 –LED output 1

Channel 7 –LED output 2

Channel 8 –LED output 3

Channel 9–LED output 4

Channel 10 –LED output 5

***

Channel 26 –LED output 21

Channel 27 –LED output 22

Channel 28 –LED output 23

Channel 29 –LED output 24

Channel 30 –LED output 25

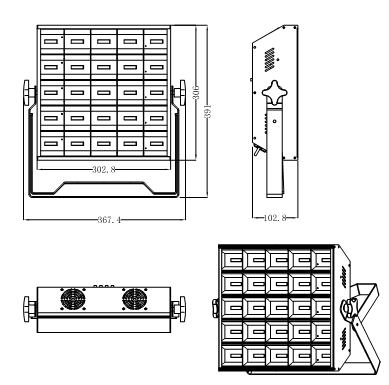

尺寸（DIMENSIONS):
